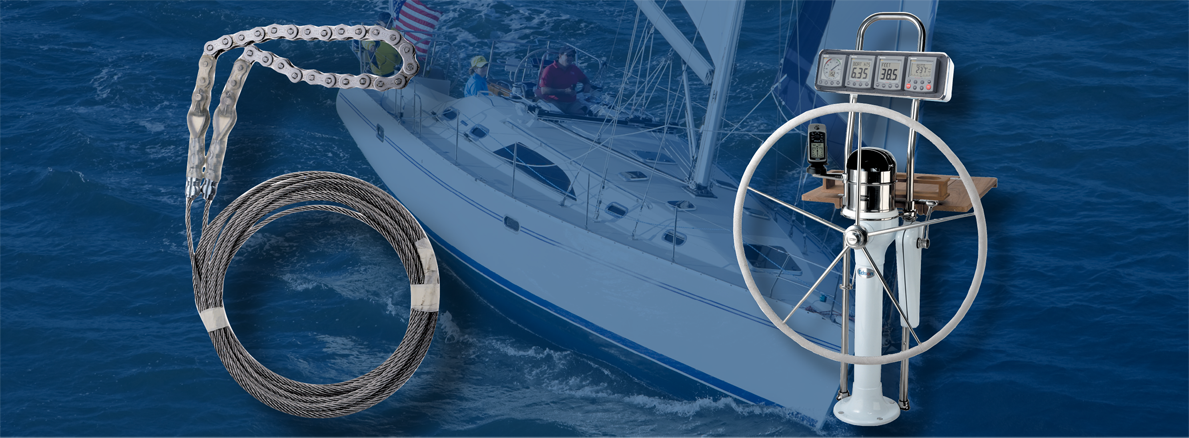

Classic - Chain & Wire
Jacob E Marine’s time-proven, reliable system used on thousands of boats for over 80 years.
• Classic Yacht Design Increases Usable Cockpit Space.
• Convenient Thru-Shaft Wheel Brake.
• For Sailboats from 22’ (6.7 m) and up.
• Durable Glossy White Baked-on Urethane Finish.
• Stainless-Steel Wheel Shafts and Sprockets.**
• Three Guard Styles Available.
• Stainless Needle Bearings.
• Large Selection of Edson Accessories such as Pedestal Guards, Instrument Housings, Drink Holders and Tables.
• Stainless Wheel Nut Included.
• All Non-Magnetic Construction.
• Hex Head Recesses in Base hold Edson’s Aluminum Bolts for Easy Installation.
• Pedestal Top Pre-Drilled for Compass and Pedestal Guard Top Plates.
• Accepts all Styles of Edson Wheels.
** Standard sprocket sizes are stainless, other sizes are brass
336 Series Pedestal
• 6 7⁄8“ Diameter Top
• Ideal for Boats from 22’ to 42’ (6.7 m - 12.8 m).
• Thru-Shaft Brake Standard.
• Fits all compasses up to 5” Card Size.
• Replaces Edson’s #334 & #335 Pedestals
• Available in Chain & Wire Only
402 Series Pedestal
• 8” Diameter Top
• Large Diameter Pedestal Top with Triple
Needle Bearings and Stainless Bearing Liners.
• Typically used on boats 40’ and up.
• Thru-Shaft Brake Standard
• Wheel Brake with Stainless Knob Included
• Fits all compasses up to 6” Card size
• For use with Windvane Self Steerers
To order a Complete Steering System for your boat, please contact Jacob E. Marine Customer Service so we can assist with selecting the steering hardware for your vessel. You can learn more about Jacob E. Marine Steering Pedestals in our online Catalog.
Jacob E. Marine continues a long tradition of making sailboat steering hardware that began with Jacob Edson under the Edson name from 1859 to 2026. We continue to manufacture Edson Pumps for powered and manual pumps.
